200KVA 3 Phase Isolation Transformer Dry Type With Enamelled Aluminum Wire
1. Product Specifications
| Product Name | Three Phase Dry Type Tranformer | Product Type | SG-200KVA |
| Product Brand | wenma Power/OEM /ODM | Rated Power | 200KVA |
| Rated Frequency | 50HZ~60HZ | Working Efficiency | 98% |
| Input Voltage | 1140V/690V/660V /480V/440V/415V etc. (customization is available) | Output Voltage | 660V/440V/ 415V/380V/ 220V/200V/ 208V etc. (customization is available) |
| Output Precision | ±2% | Cooling Method | Air Cooling |
| Insulation Class | F | Insulation Resistance | ≥2 MΩ |
| Waveform Distortion | Nil | Protection Class | IP23 |
| Overload Capability | 30s for double load | Dielectrical Strength | 2000vac/min |
2. Application
Three phase dry type transformer is widely used in industrial area. It is usually applied with different electrical equipment. For example, it could be used with imported electrical machines, including embroidary machine, production line, pump or any other appliance that needs a transformer.
The 200KVA three phase transformer mainly functions in voltage changing, no matter stepping up the voltage or stepping down the voltage.
3. Instructions of Using

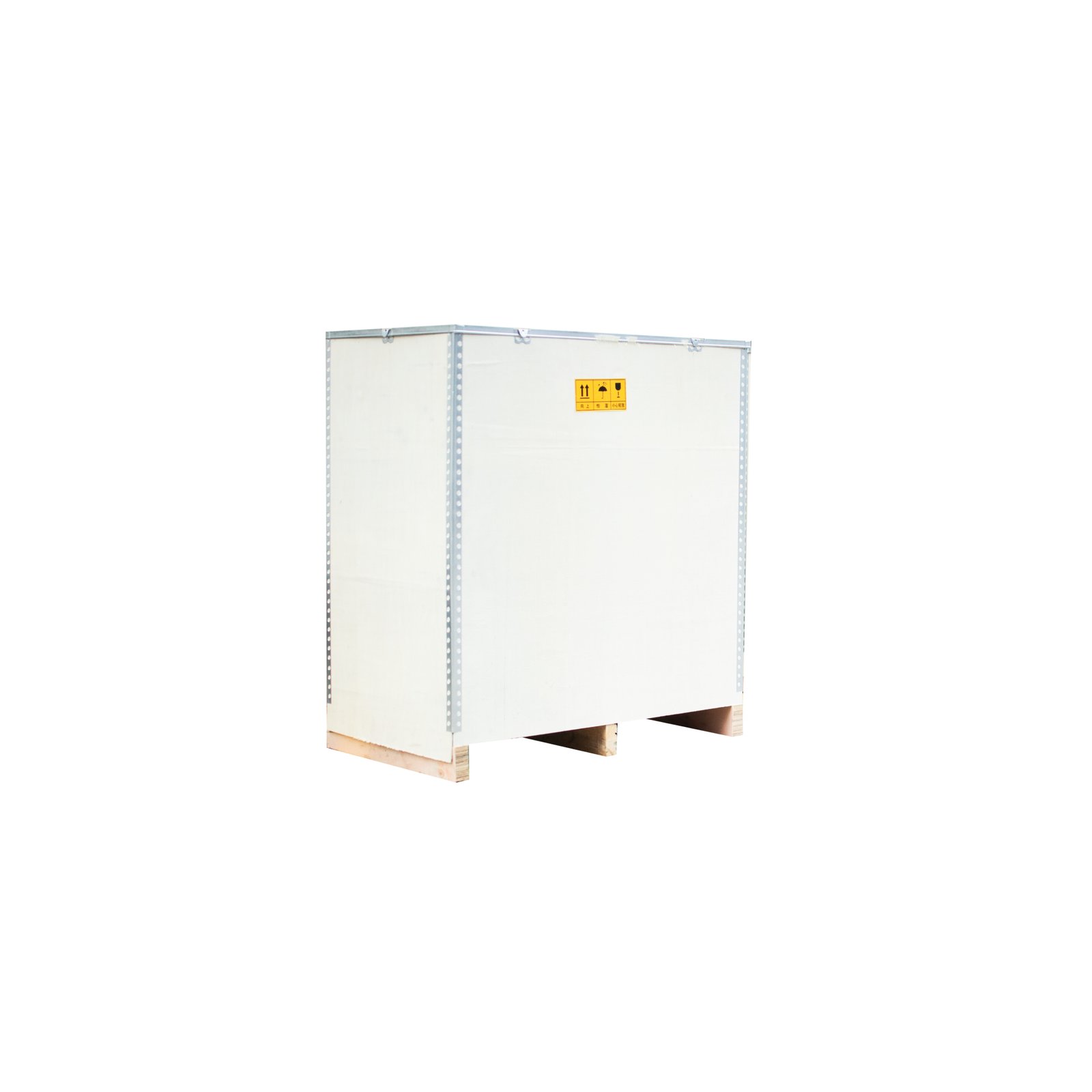

① Disassemble the wooden case and take out the transformer.
② Read the instruction manual carefully.
③ Install the transformer in a well-ventilated place before you connect the wires.
④ Carefully exam the circuit and the voltage of power grid before using the product. Normally, deviation of ±5% of power grid is permitted. If the deviation is over this extent, please consider adding a voltage regulator in front to ensure normal performance of the product.
⑤ Connect wires according to the instruction manual or lables on the transformer.
⑥ Check the working condition of the transformer after powering on.

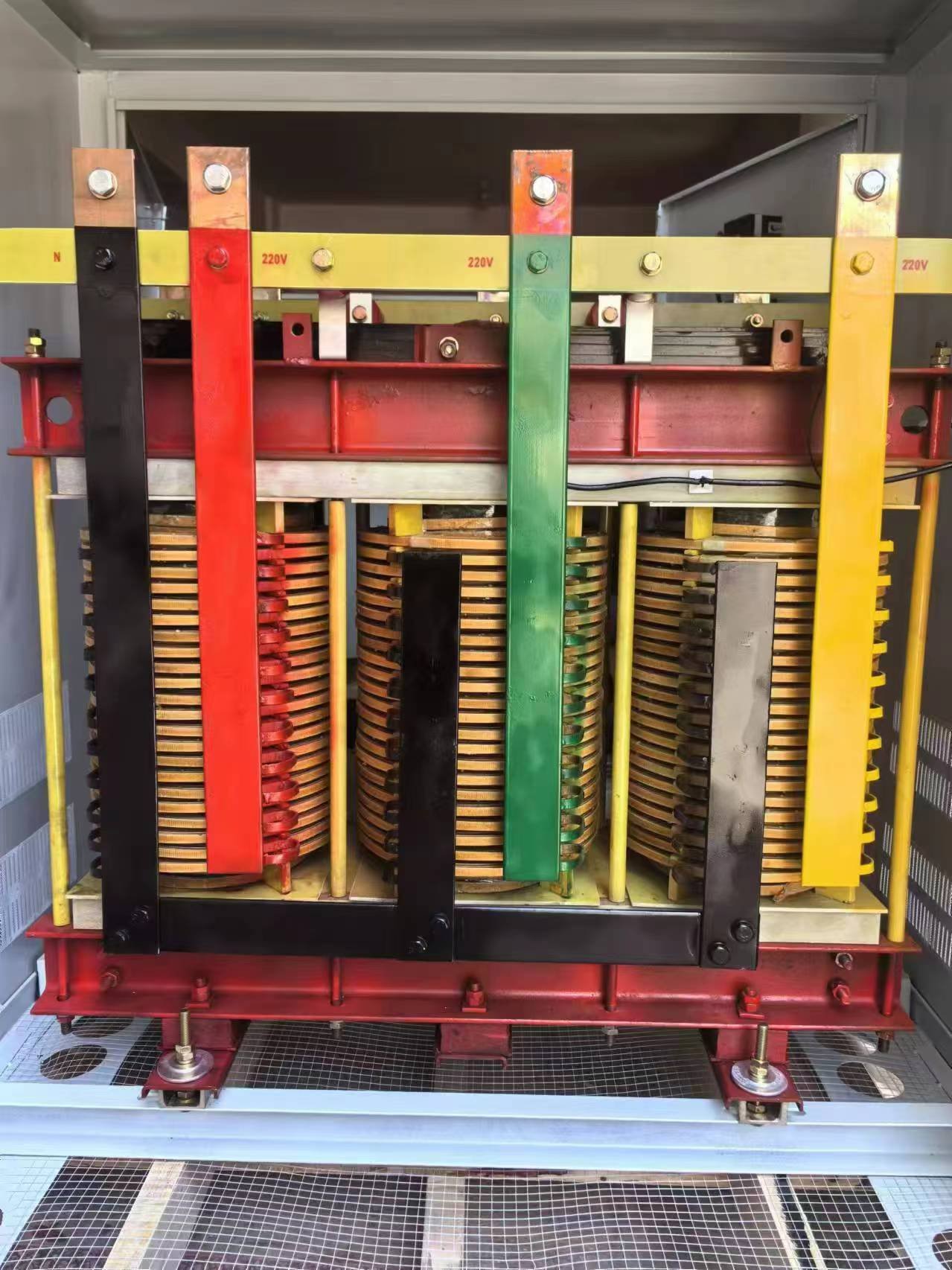

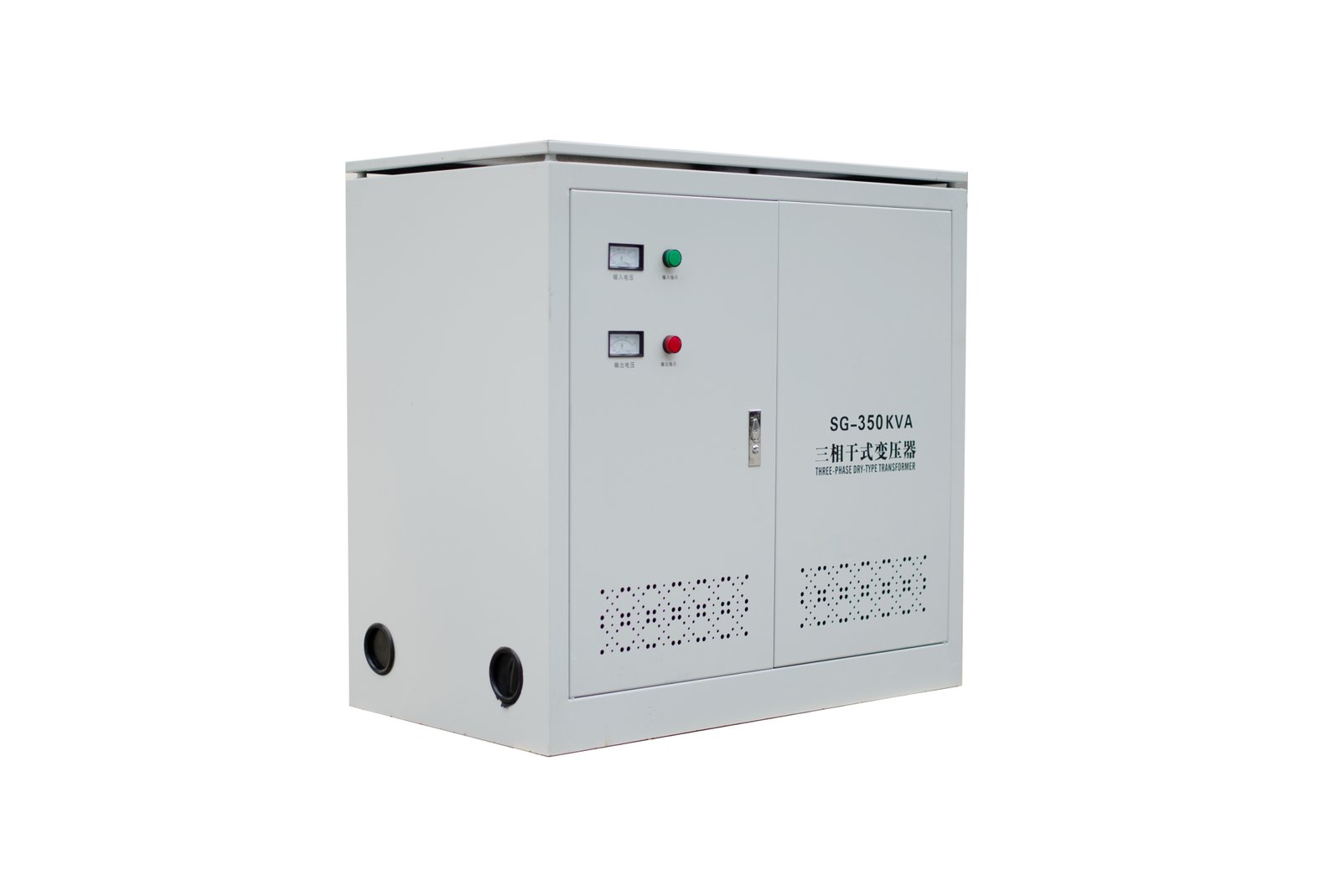

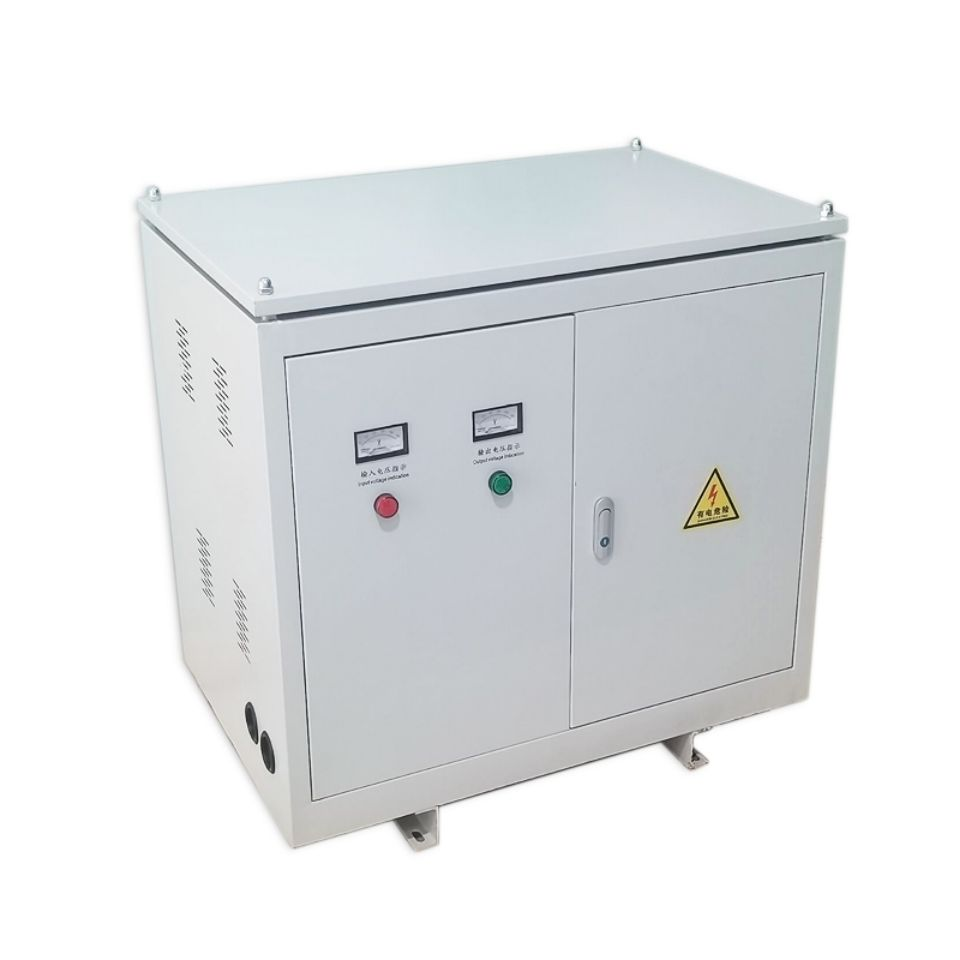

4. Product Show
| Type | Entrance size |
