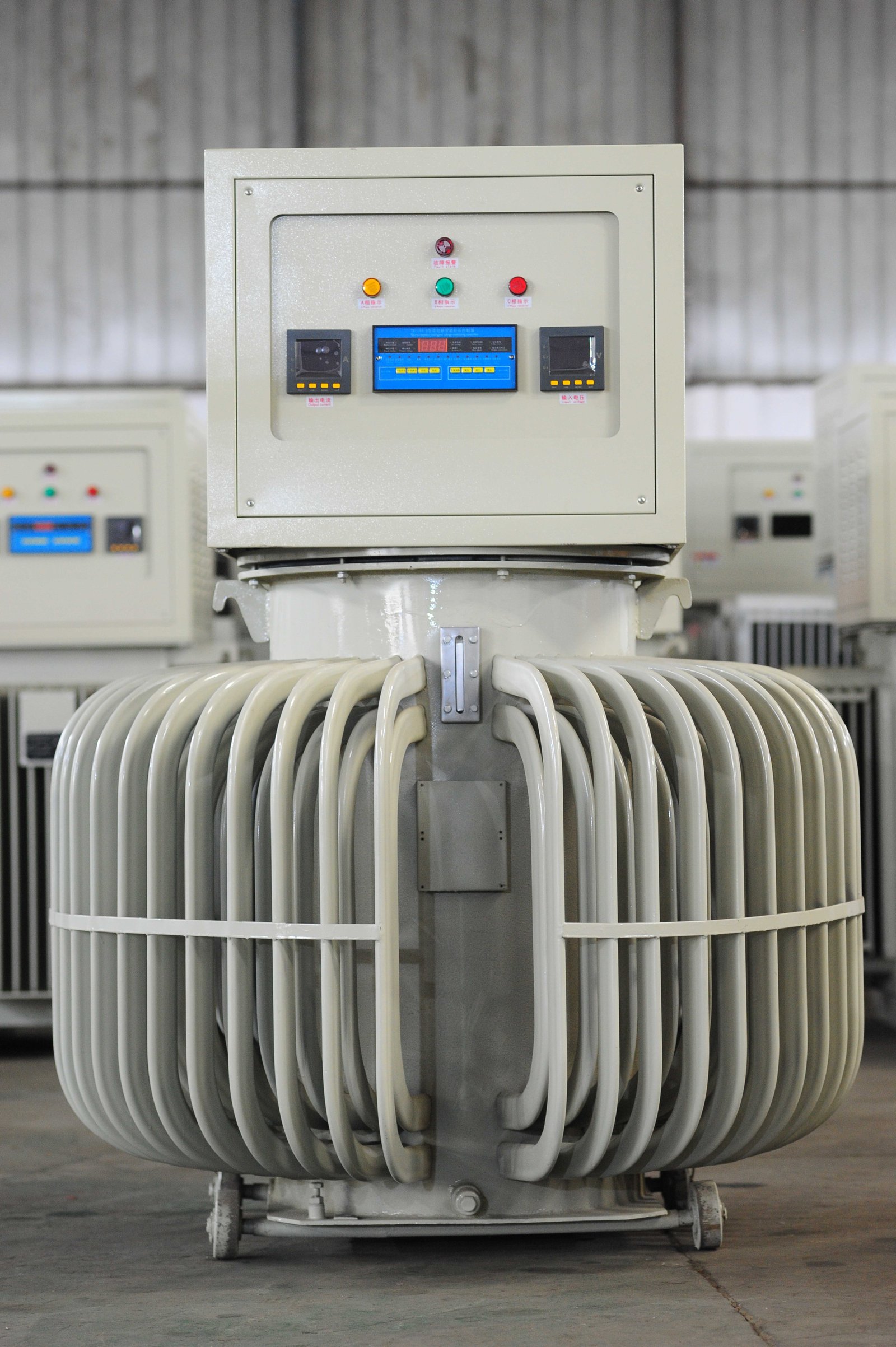

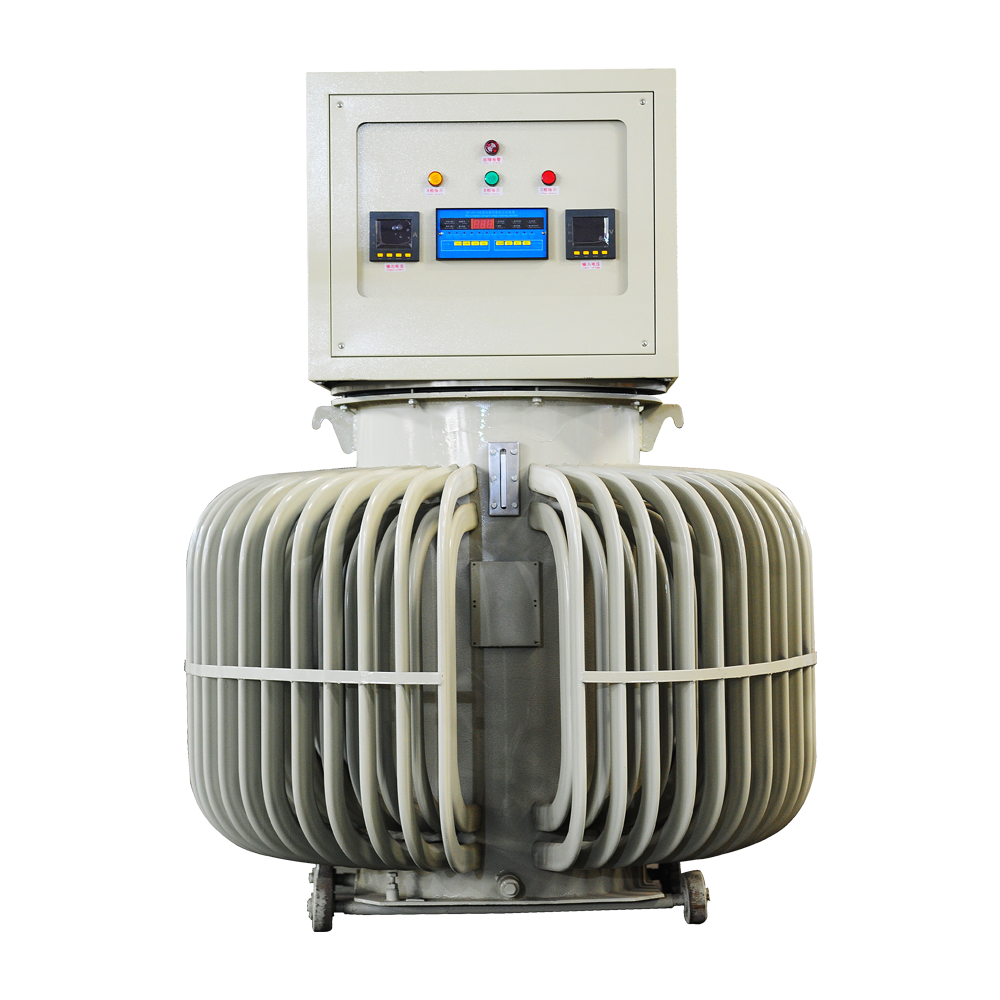

TNSJA-400KVA Oil immersed fully automatic intelligent voltage regulator
Application Cases
Technical parameters of the oil-immersed intelligent and fully automatic voltage regulator | ||
input | rated voltage | Three phase 380V |
Stable pressure range | 310V-456V (special voltage available) | |
frequency | 50HZ/60HZ | |
output | rated voltage | Three phase 380V |
Stable pressure accuracy | ±1-1.5℅ adjustable | |
response time | ≤1-10s adjustable | |
load current | 1519A | |
waveform distortion | No additional waveform distortion is generated | |
efficiency | Admidia 96 ℅ above | |
indicate | voltage | Digital display of the input voltage and the output voltage |
electrical current | Output current digital display | |
pilot lamp | Execute | |
failure indication | Over voltage, under voltage, phase deficiency, sound and light alarm indication | |
control method | DSP intelligent control technology of computing metering chip | |
operate mode | With automatic pressure stabilization and long-term operation function | |
Voltage adjustment method | Three-phase unification |
Oil-immersed voltage stabilizers are devices that use electromagnetic induction principles to regulate voltage. They consist of a voltage-regulating transformer and supporting facilities (such as oil tanks, stators, rotors, motors, limiters, etc.) and are widely used in various fields such as industrial and mining enterprises, imported equipment, elevator lighting, precision machine tools, railways, and construction sites. Oil-immersed voltage stabilizers are characterized by their robust structure, high heat dissipation efficiency, continuous voltage stabilization design, contactless voltage adjustment, and digital control panel monitoring.
Technical parameters of oil-immersed voltage stabilizers include an oil-immersed induction control method, an input rated voltage of 380VAC, a voltage range from 323VAC to 456VAC, and a frequency of 50/60 Hz. The output rated voltage is also 380VAC, with a voltage stabilization accuracy of ±1% (adjustable to 1%~5%), a power factor of PF≥0.8, efficiency of ≥98%, response time of ≤0.5 seconds, delayed output of ≤5 seconds (optional item), and waveform distortion of ≤1%. In addition, oil-immersed voltage stabilizers also have protection functions for overvoltage, undervoltage, overload, and short circuit.
The insulation of oil-immersed transformers mainly relies on oil, which also serves as a cooling medium, dissipating heat through oil immersion self-cooling, air cooling, water cooling, or forced oil circulation. The structure of an oil-immersed transformer includes a core, windings, an oil tank, a voltage regulation device, a radiator, an oil pillow, a gas relay, an insulating bushing, and a pressure relief valve. Its insulation functions include isolating different live parts, improving the uniformity of the electric field distribution, providing capacitance, and offering mechanical support.
Compared with dry-type stabilizers, oil-immersed stabilizers have the advantages of being contactless, maintenance-free, impact-resistant, high-power, low-priced, stable, and adaptable to harsh environments. However, they also have disadvantages such as high loss, slow response, high noise, waveform distortion, and large size. Oil-immersed stabilizers are suitable for use in places with high dust, debris, high environmental temperatures, and requirements for sealing, such as in the metallurgy, stamping, furniture, and glass industries.
① How long is the lead time after receiving my deposit?
It depends on the quantity of the order. If the quantity is not that large (less than 10 pcs), it is normally less than 10 days for us to prepare the products for you.
② How long is the warranty period?
Twelve-month warranty is provided by us after you purchase the product.
③ Is OEM and ODM acceptable?
Yes, absolutely it's acceptable. The product could be customized according to your needs.
④ How about the payment terms?
We accept TT/ or other payment methods convenient for both of us.
⑤ What certificates do you have?
We have ISO:9001 and CE certificates. And we can apply for more certificates if it is needed.
⑥ Would you support on-spot services?
If you have any question on the usage of the product, we could first provide remote guidance service for you. If necessary, on-spot services could be provided too.
⑦ Where is your factory?
We have factories and offices in Wenzhou, Zhejiang Province, Guangzhou, Guangdong Province, and Wuhan, Hubei Province, People's Republic of China
⑧ Could you please provide form A or form B for us?
Yes, certainly, it could be provided if necessary.
